Hyundai Palisade: Charging System / Schematic diagrams

Hyundai Palisade (LX2) 2020-2025 Service Manual / Engine Electrical System / Charging System / Schematic diagrams

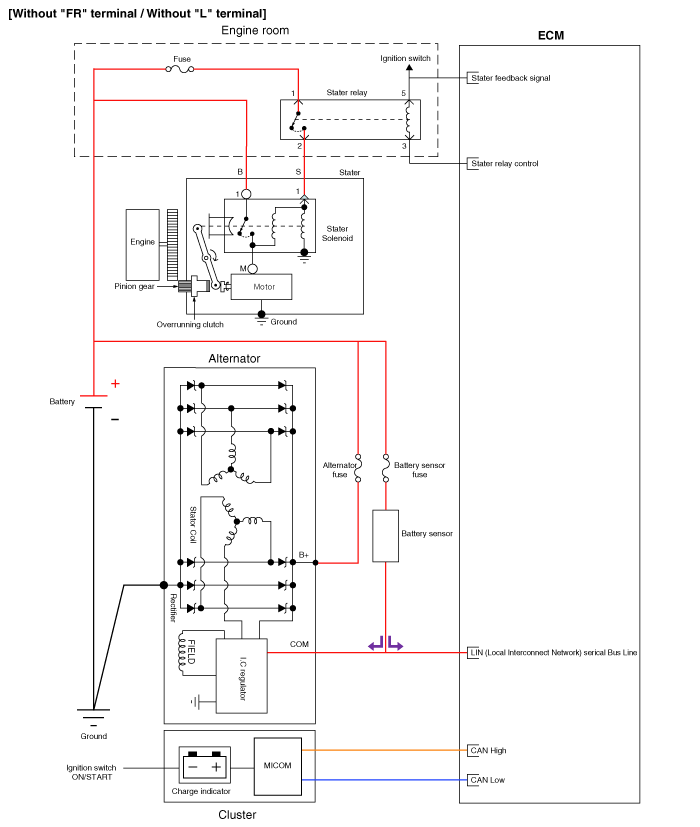

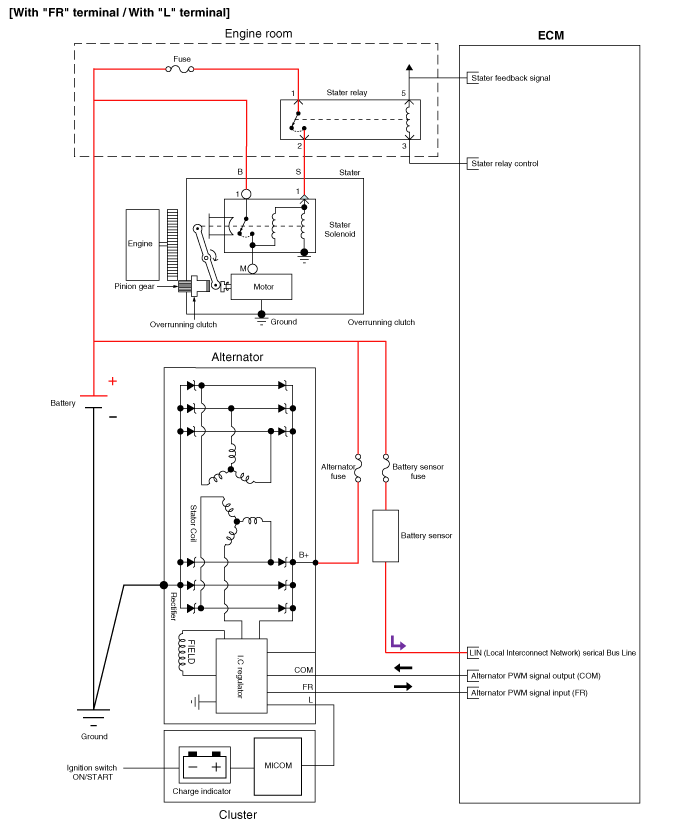

Circuit Diagram

Hyundai Palisade. Schematic diagrams

Hyundai Palisade. Schematic diagrams

    Description and operation

    Description The charging system includes a battery, an alternator with a built-in regulator, and the charging indicator light and wire...

    Repair procedures

    Inspection Inspection Item • Battery efficiency inspection • Battery voltage inspection • Charging voltage insptection • General inspection • Terminal tightening state inspection • Engine/ transaxle ground state inspection • Wiring harness ground state inspection • Electrical Specified Value Inspection • Vehicle parasitic current inspection • Battery capacity inspection Battery Efficiency Inspection    • Check that the battery cables are connected to the correct terminals...
