Hyundai Palisade: Interior features / USB Charger

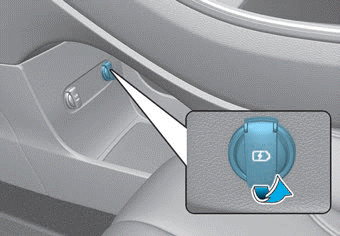

■ Front

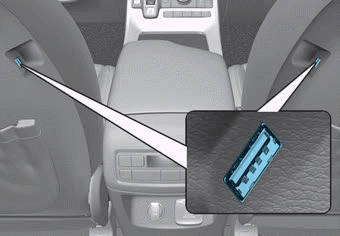

■ Rear (2nd row)

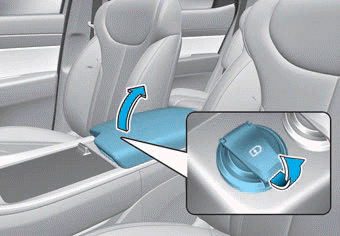

■ Center console storage

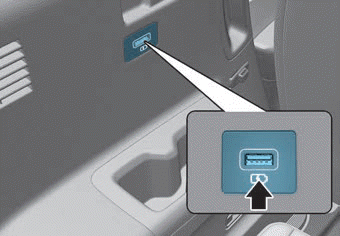

■ Rear (3rd row, left side)

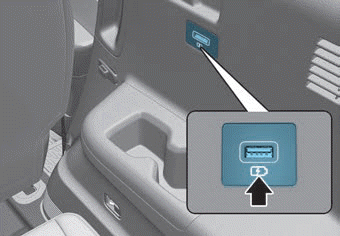

■ Rear (3rd row, right side)
The USB charger is designed to recharge batteries of small size electrical devices using a USB cable.
The electrical devices can be recharged when the ignition switch is ON. Insert the USB charger into the USB port, and re-charge a smart phone or a tablet PC.
The battery charging state may be monitored on the electrical device.
Disconnect the USB cable from the USB port after use.
- A smart phone or a tablet PC may get warmer during the re-charging process. It does not indicate any malfunction with the charging system.
- A smart phone or a tablet PC, which adopts a different re-charging method, may not be properly re-charged. In this case, use an exclusive charger of your device.
- The charging terminal is only to recharge a device. Do not use the charging terminal either to turn ON an audio or to play media.
AC Inverter
The AC inverter supplies 115V/150W
electric power to operate electric
accessories or equipments.
Information
Rated voltage : AC 115V
Maximum electric power : 150W
In order to avoid an electrical system
failure, electric shock, etc...
Wireless Cellular Phone
Charging System
[A]: Indicator light, [B]: Charging pad
On certain models, the vehicle
comes equipped with a wireless cellular
phone charger.
The system is available when all
doors are closed, and when the ignition
switch is ON...
Other information:
Hyundai Palisade (LX2) 2020-2025 Owner's Manual: Smart Cruise Control Switch
..
Hyundai Palisade (LX2) 2020-2025 Service Manual: Seat Heater Switch
Components and components location Components 1. Front seat heater switch 2. Rear seat heater switch Schematic diagrams Circuit Diagram Front Seat No Connector A 1 C_CAN (High) 2 C_CAN (Low) 3 - 4 LIN 5 - 6 Auto hold signal 7 - 8 Battery (+) 9 IGN 10 Illumination (+) 11 - 12 Illumination (-) 13 Ground 14 DETENT 15 - 16 PDW signal 17 Steering wheel heater signal 18 DBC signal 19 ISG signal 20 SVM/RVM signal 21 ISG indicator 22 SVM indicator 23 PDW indicator 24 Steering whell heater indicator 2nd Seat No Connector A 1 Battery (+) 2 ISG Power(+) 3 Illumination (+) 4 Sensor REF (+5V) 5 Mode actuator feadback 6 Temperature actuator feedback 7 Mode actuator (Vent) 8 Mode actuator (Defrost) 9 Temperature actuator (Cooling) 10 Temperature actuator (Heating) 11 DETENT (-) 12 K-LINE 13 LIN line (Rear left seat) 14 LIN line (Rear right seat 15 - 16 Illumination (-) 17 IGN 2 18 IGN 1 19 Blower motor (+) 20 - 21 Rear FET (Drain feedback) 22 Rear FET (Gate) 23 Left heater swtich 24 Left heater indicator (High) 25 Left heater indicator (Middle) 26 Left heater indicator (Low) 27 Right heater swtich 28 Right heater indicator (High) 29 Right heater indicator (Middle) 30 Right heater indicator (Low) 31 Sensor ground 32 Ground Repair procedures Removal Front seat 1...
