Hyundai Palisade: Intake And Exhaust System / Variable Intake Solenoid (VIS) Actuator

Hyundai Palisade (LX2) 2020-2025 Service Manual / Engine Mechanical System / Intake And Exhaust System / Variable Intake Solenoid (VIS) Actuator

Repair procedures
Removal and Installation
VIS 1 [Intake Manifold]
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
3.

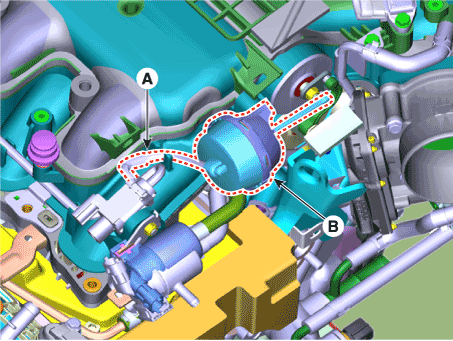

Disconnect the VIS actuator hose (A).
4.
Remove the VIS actuator (B).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Hyundai Palisade. Repair procedures

5.
Install in the reverse order of removal.
VIS 2 [Surge Tank]
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
3.

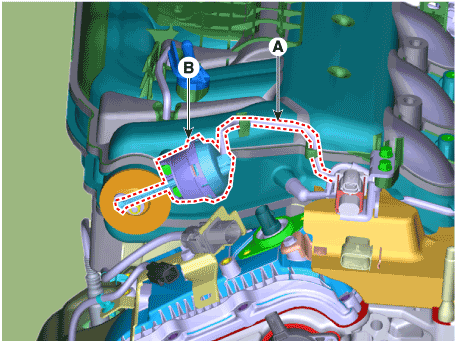

Disconnect the VIS actuator hose (A).
4.
Remove the VIS actuator (B).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Hyundai Palisade. Repair procedures

5.
Install in the reverse order of removal.
