Hyundai Palisade: Seat Electrical / 3rd Seat Folding System

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Seat Electrical / 3rd Seat Folding System

Components and components location
Components

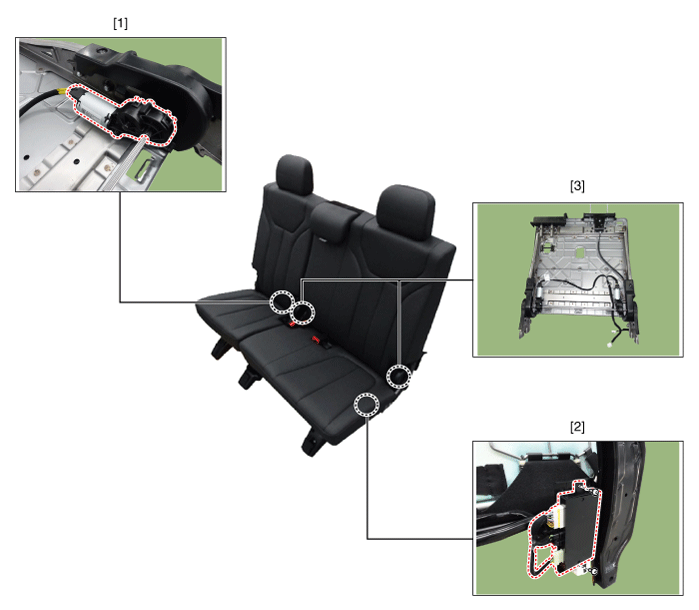

3rd Seat

Hyundai Palisade. Components and components location

1. 3rd right folding motor
2. Folding seat control unit
3. 3rd left folding motor

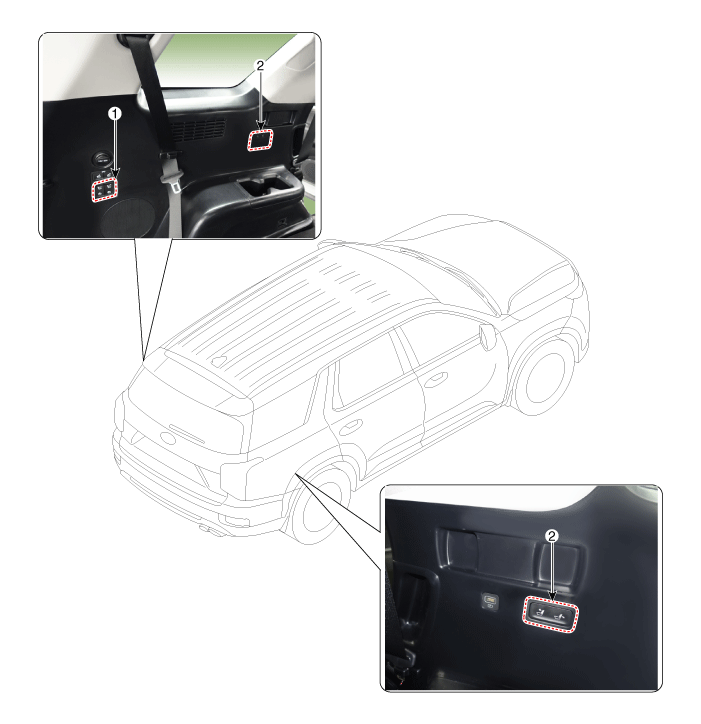

Luggage Side Trim

Hyundai Palisade. Components and components location

1. 2nd/3rd integrated seat switch (3rd Folding/Unfolding)
2. 3rd reclining switch

Schematic diagrams
Circuit Diagram

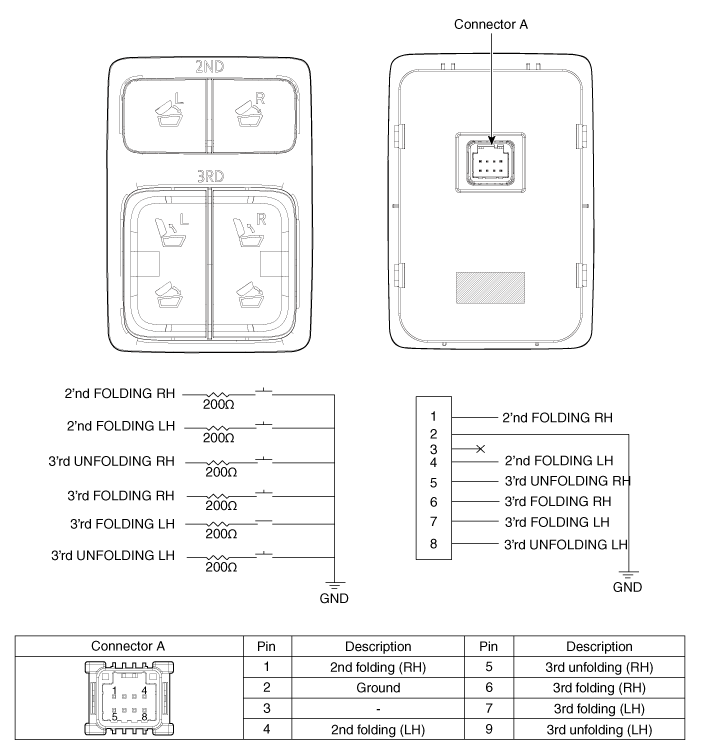

Left Swtich

Hyundai Palisade. Schematic diagrams

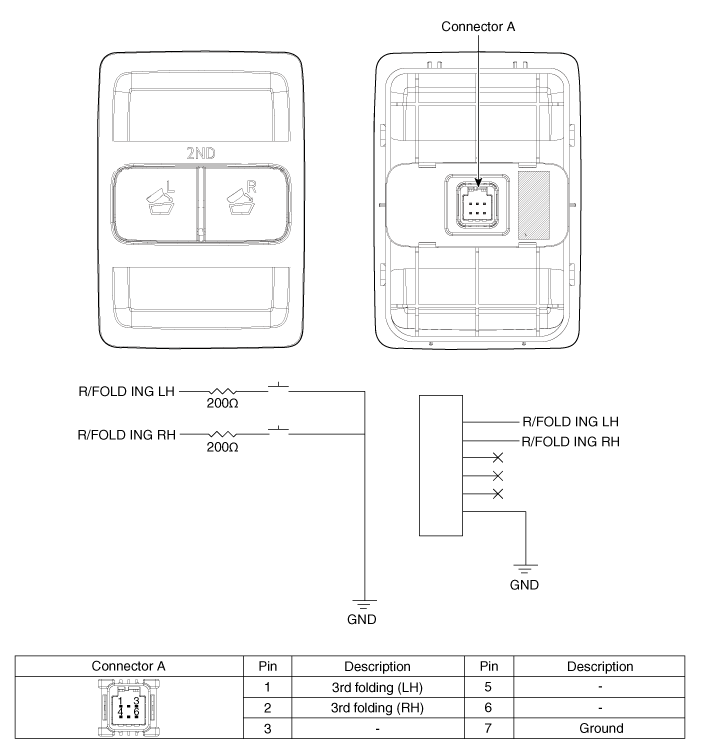

Right Swtich

Hyundai Palisade. Schematic diagrams

Repair procedures
Removal
Control Unit
1.
Remove the 3rt line seat assembly.
(Refer to Body - "Rear Seat Assembly")
2.

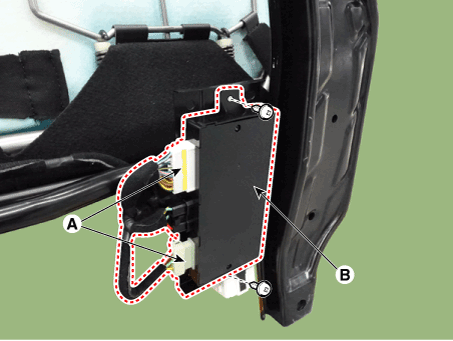

Remove the contorl unit (B) after disconnecting the connector (A).

Hyundai Palisade. Repair procedures

Switch
1.
Remove the luggage side trim.
(Refer to Body - "Luggage Side Trim")
2.

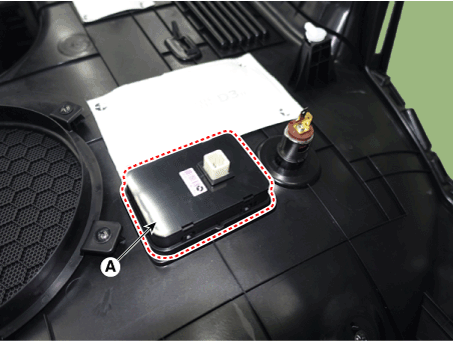

Remove the seat folding switch (A).
[LH]

Hyundai Palisade. Repair procedures

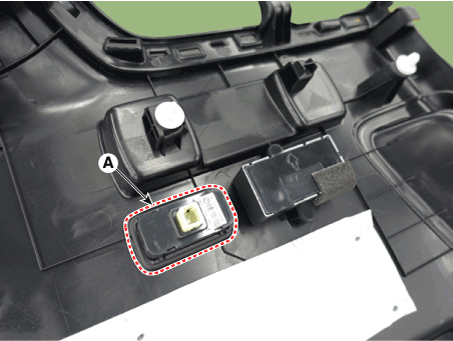

[RH]

Hyundai Palisade. Repair procedures

Installation
Control Unit
1.
Install the control unit.
2.
Install the 3rd line seat assembly.
Switch
1.
Install the seat switch.
2.
Install the luggage side trim.
