Hyundai Palisade: Intake And Exhaust System / Air Cleaner

Hyundai Palisade (LX2) 2020-2025 Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner

Components and components location

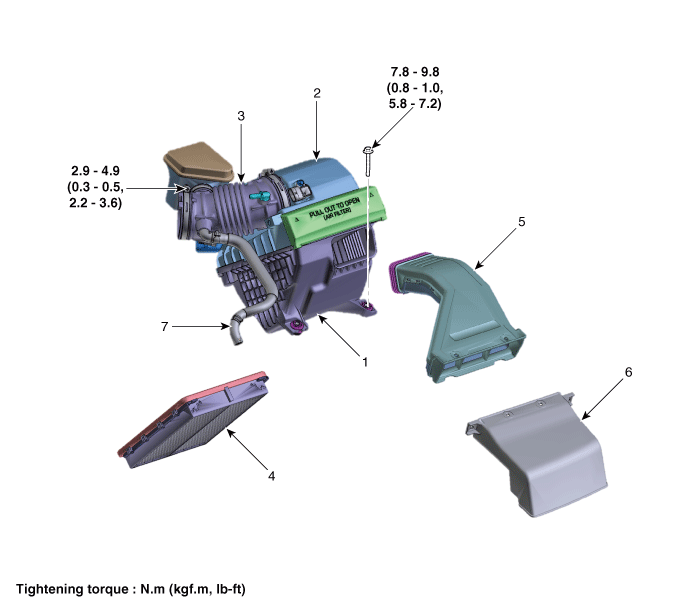

Components

Hyundai Palisade. Components and components location

1. Air cleaner body
2. Air cleaner cover
3. Air intake hose
4. Air cleaner element

5. Air duct
6. Air intake shield
7. Breather hose

Repair procedures

Removal and Installation

Air Cleaner Assembly

1.	Remove the engine cover. (Refer to Engine and Transaxle Assembly - "Engine Cover")

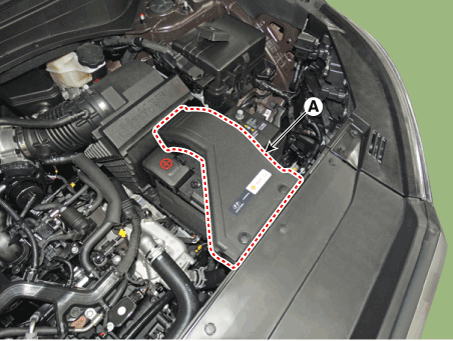

2.	Remove the air duct (A).

3.	Disconnect the battery positive terminal.

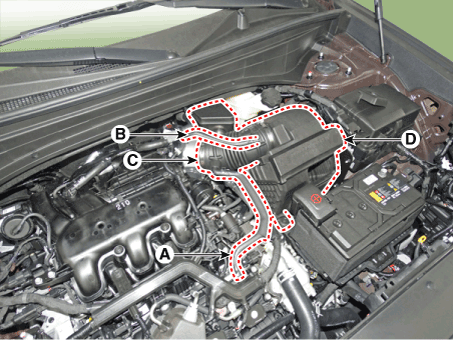

4.	Disconnect the breather hose (A).

5.	Disconnect the brake vacuum hose (B).

6.	Disconnect the air intake hose (C).

Remove the air cleaner assembly (D).

Tightening torque

Hose clamp :

2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft)

Air cleaner assembly :

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Hyundai Palisade. Repair procedures

8.	Install in the reverse order of removal.

Air Cleaner Element

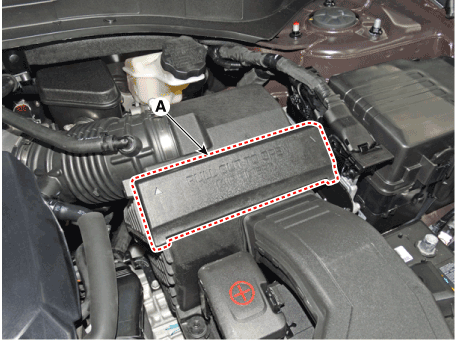

1.	Open the air cleaner element cover (A) by lifting up the air cleaner element cover handle.

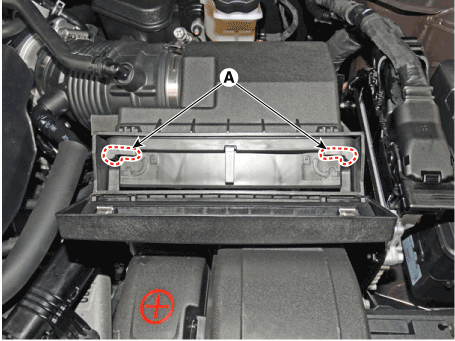

2.	Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

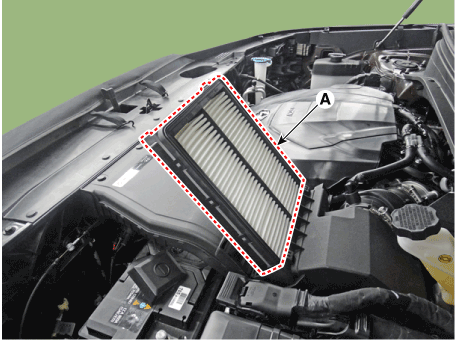

Replace the air cleaner element (A) with a new one.

Hyundai Palisade. Repair procedures

•	Grab the handle then pull out the air cleaner element.

4.	Lock the air cleaner element camshaft and then close the air cleaner element cover.
