Hyundai Palisade: Airbag Module / Airbag Module Disposal
Description and operation
When you scrap a vehicle equipped with an airbag, you must deploy it first.
When you deploy an airbag, you need to have a skilled mechanic do the work.
The used airbag should not be reinstalled in another vehicle for reuse.
• |
Upon deployment, the explosion will create a loud noise, so
you have to do it in a proper place not to disturb others.
|
• |
When you deploy an airbag, use a specially designated tool and
select a place where there is no electric noise.
|
• |
When operating the airbag deployment tool, you must be at least
5 meters away from the airbag.
|
• |
Upon deployment, the airbag gives off an intense heat. So wait
for 30 minutes or so before touching it.
|
• |
Make sure to use gloves and safety goggles when you deal with
the deployed airbag.
|
• |
Do not spread water over the deployed airbag.
|
• |
Always wash your hands after the deployment work is completed.
|
|
Deploying Airbags in the Vehicle
1. |
Turn the ignition switch OFF, and disconnect the battery negative cable
and wait at least three minutes.
|
2. |
Confirm that each airbag or side airbag is securely mounted.
|
3. |
Confirm that the special tool is functioning properly by following the
check procedure.
(1) |
Disconnect the 2P connector between the airbag and wire harness.
|
(2) |
Install the SST
•
|
For the driver airbag, separate the 2-pin connector
from it and connect the deployment adapter to reattach
it on the steerin-g wheel.
|
|
|
4. |
Locate the airbag deployment tool at a place at least 5 meters away
from the airbag.
|
5. |

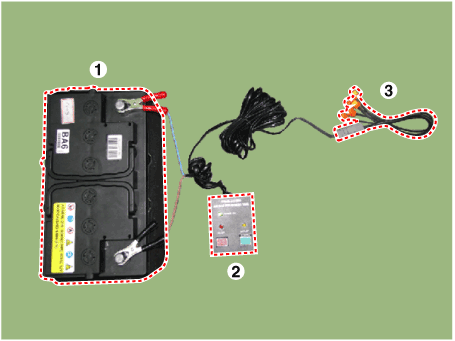

After connecting the deployment adapter with the deployment tool (0957A-34100A),
connect it to the external battery for deployment.
(2) |
Deployment tool (0957A-34100A)
|
(3) |
Deployment adapter
–
|
DAB, PAB, CAB, BPT (0957A-AL140)
|

|
|
6. |

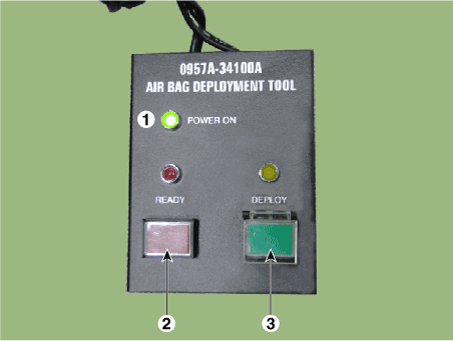

Switch on the deployment tool to proceed with deployment.
(1) |
If the battery is connected, the POWER ON (1) light will be
on.
|
(2) |
Press and hold READY (2) until it is on, and then press DEPLOY
(3) to deploy the airbag.

• |
Upon deployment, the airbag will create a loud
noise and you can see it suddenly expand and
contract slowly.
|
|
|
|
7. |

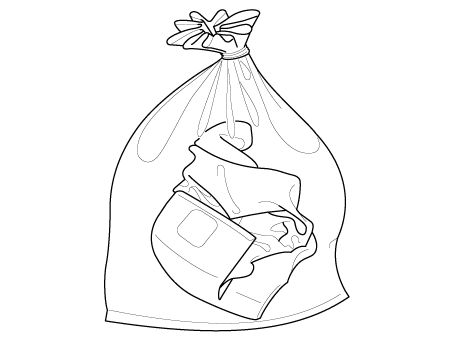

Dispose of the complete airbag. No parts can be reused. Place it in
a sturdy plastic bag and seal it securely.

|
Deploying the Airbag Out of the Vehicle
In case the airbag is separated from a scrapped car, or when you find defects
or damages on it, you have to deploy it as follows :
1. |
Place the airbag deployment module face upward on a flat surface outdoor.
•
|
If the airbag deployment module were face downward,
the airbag will pop up and cause damage to people around
it.
|
|
|
2. |
Get ready to deploy the airbag as follows:
(1) |
Separate the 2-pin connecter of the airbag from the vehicle.
|
(2) |
Connect the deployment adapter.
•
|
For the driver airbag, separate the 2-pin connector
from it and connect the deployment adapter to reattach
it on the steering wheel.
|
|
|
3. |
Locate the airbag deployment tool at a place at least 5 meters away
from the airbag.
|
4. |
After connecting the deployment adapter (0957A-AL140, 0957A-AL150, 0957A-3T200)
with the deployment tool (0957A-34100A), connect it to the external
battery (12V) for deployment.
(2) |
Airbag Deploy (0957A-34100A)
|
(3) |
Deployment adapter
–
|
DAB, PAB, CAB, BPT (0957A-AL140)
|

• |
When EFD are deployed, broken parts are exploded
and scattered.
|
• |
EFD (Emergency Fastening Device) must be placed
in the piled up 5 tires to avoid exploded broken
parts.
|
• |
Technicians should wear an eye protector and
extremely be cautions of exploded broken parts.
|
|
|
|
5. |
Switch on the deployment tool to proceed with deployment.
(1) |
If the battery is connected, the POWER ON (1) light will be
on.
|
(2) |
Press and hold READY (2) until it is on, and then press DEPLOY
(3) to deploy the airbag.

|
|
6. |
Dispose of the complete airbag. No parts can be reused. Place it in
a sturdy plastic bag and seal it securely.

|
Disposal of Damaged Airbag (Not Deployed Airbag)
1. |
Turn the ignition switch OFF, and disconnect the battery negative cable
and wait at least three minutes.
|
2. |
If installed airbags in a vehicle, follow the removal procedure of damaged
airbag.
|
3. |
If the removed parts have a lead wire, make a short circuit by twisting
together the two airbag inflator wires.
|
4. |
Package the airbag in exactly the same packing that the new replacement
part come in.
|
5. |
Mark the outside of the box "DAMAGED AIRBAG NOT DEPLOYED" so it does
not get confused with your parts stock.
|
Components and components location
Components
1. Curtain Airbag (CAB)
Repair procedures
Removal
1...
