Hyundai Palisade: Seat Electrical / Components and components location
Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Seat Electrical / Components and components location
| Component Location |

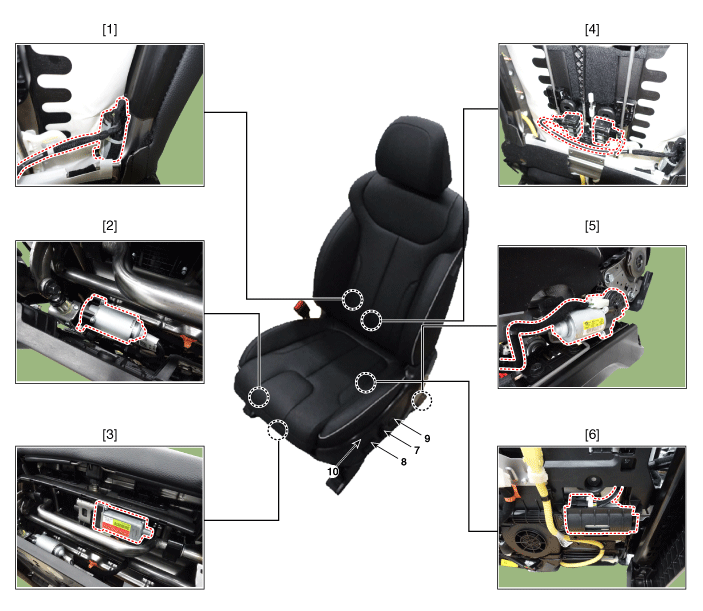

| 1. Backlest motor 2. Front height motor 3. Cushion extension motor 4. Lumber support motor 5. Rear height motor |
6. Slide motor 7. Slide switch 8. Backrest switch 9. Lumber support switch 10. Cushion extension switch |
Power Seat Motor
Repair procedures
Inspection
Power Seat Motor
1.
Disconnect the connectors for each motor.
(Refer to Body - "Front Seat Assembly")
A : Slide motor
B : Rear height motor
C : Front height motor
D : Lumber support motor (Vertical)
E : Lumber support motor (Horizontal)
F : Backlest motor
G : Cushion extension motor
2...
