Specifications |
[BCW, BCA] |
Items |
Blind-Spot Collision Warning (BCW) |
Blind-Spot Collision- Avoidance Assist (BCA) |
Rated voltage |
DC 12V |
|
Operating voltage |
9V - 16V |
|
Operating speed |
30 km/h - 255 km/h |
60 km/h - 180 km/h |
Sensible distance |
70m |
|
Curvature radius |
Start : More than 100m |
Start : More than 625m |
Stop : Less than 70m |
Stop : Less than 588m |
|
Frequency |
76 - 77 GHz |
|
Numbers |
2EA |
[RCCW, RCCA] |
Items |
Rear Cross-Traffic Collision Warning System (RCCW) |
Rear Cross-Traffic Collision- Avoidance Assist (RCCA) |
Rated voltage |
DC 12V |
|
Operating voltage |
9V ~ 16V |
|
Operating speed |
0 km/h ~ 10 km/h |
0.1 km/h ~ 10 km/h |
Sensible distance |
25m |
|
Curvature radius |
- |
|
Frequency |
76 ~ 77 GHz |
|
Numbers |
2EA |

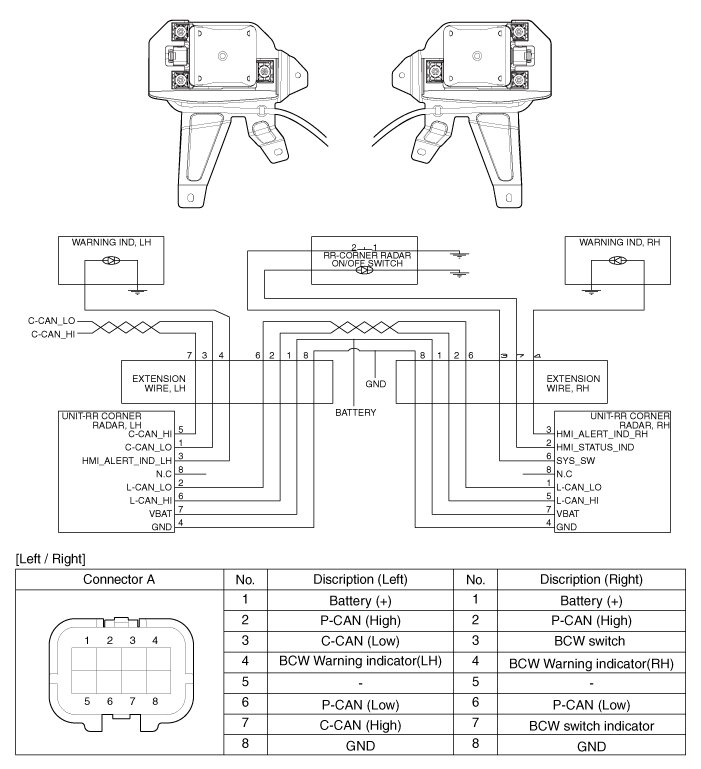

Connector and Terminal Function |
Removal |
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the rear bumper cover.
(Refer to Body - "Rear Bumper Cover")
|
3. |

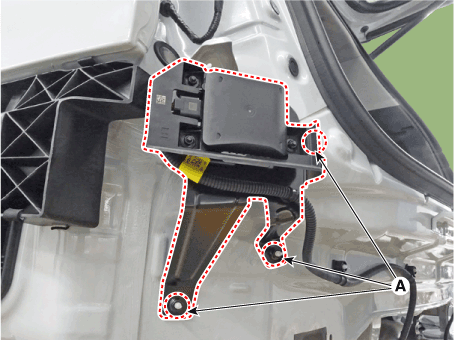

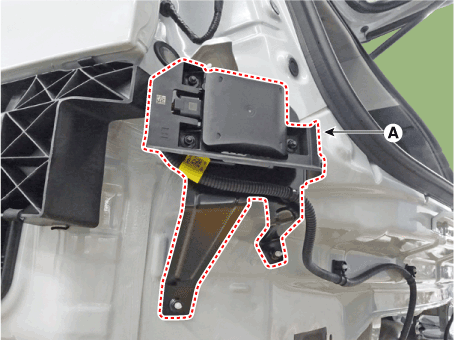

Remove the blind spot radar unit (A) after loosening the mounting nuts.
[LH]
[RH]
|
4. |

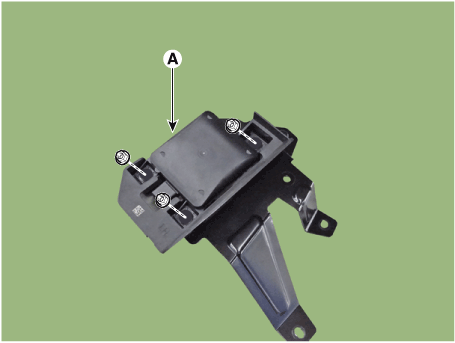

When replace the bracket, disconnect the radar connector (A) after loosening
the mounting nuts.
|
Installation |
1. |
Install the rear corner radar unit and bracket.
|
2. |
install the rear bumper cover.
|
3. |
Connect the negative (-) battery terminal.
|
4. |
Perform "Correcting the Rear Corner Radar Unit Angle" procedures.
|
5. |
Perform "Rear Corner Radar Calibration" procedures.
|
Inspection |
1. |
After replacing the blind-spot radar unit or bracket, with the bumper
removed, use the blind-spot radar unit correction tool set (special
tool : 09985-3T500) to perform angle correction.
|
2. |

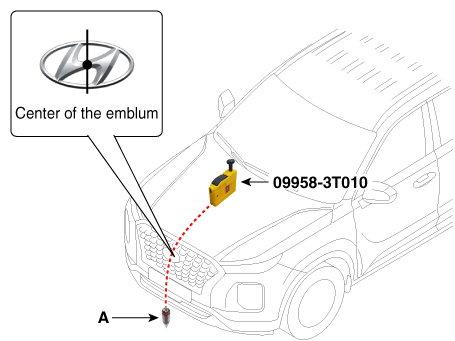

Attach a vertical plumb (special tool : 09958-3T010) on the hood, and
lower the plumb (A) to the ground so that it passes through the center
of the emblem.
|

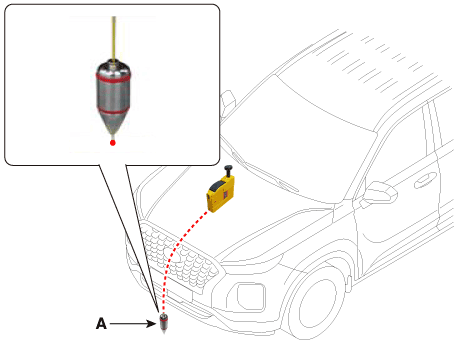

3. |
Marking the center point below the plumb (A).
|
4. |

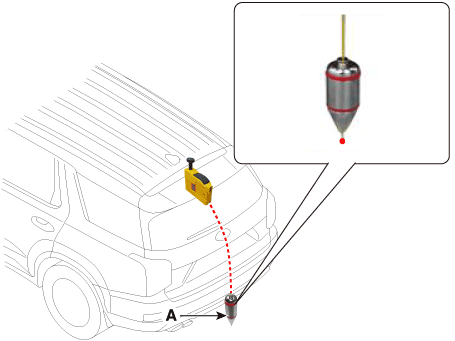

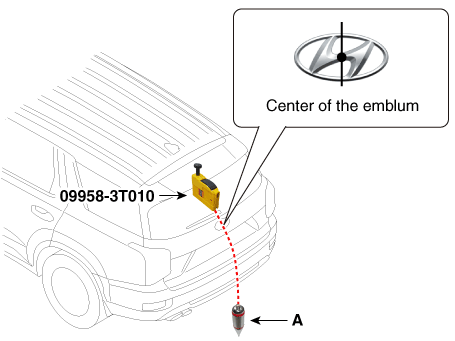

Attach a vertical plumb (special tool : 09958-3T010) on the trunk (or
tailgate), and lower the plumb (A) to the ground so that it passes through
the center of the emblem.
|
5. |
Marking the center point below the plumb (A).
|
6. |

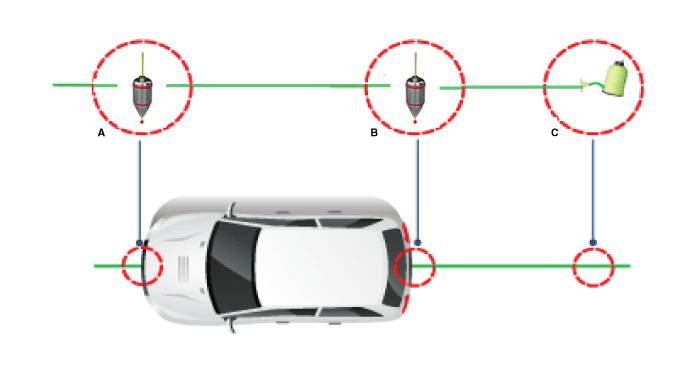

Marking the center of vehicle by a string.
|
7. |
Mount the blind-spot radar unit fixing adaptor (special tool : 09958-3T080)
on the blind-spot radar unit and fix the level laser (special tool :
09958-3T070).
|
8. |
Measure the angle (C) between the center line (A) of the angle measuring
plate and the horizontal laser beam (B) using a digital protractor (special
tool : 09958-3T090).
|
9. |

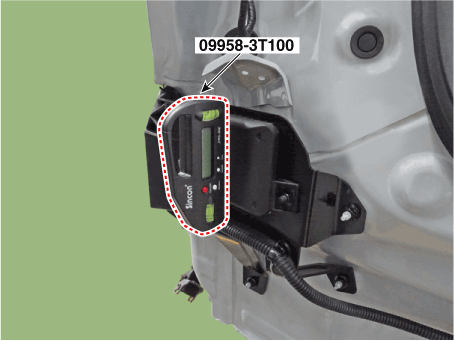

Use a digital inclinometer (special tool : 09958-3T100) to measure the
vertical angle of the blind-spot radar unit.
|
10. |
Measure the horizontal and vertical angles of left and right blind-spot
radar units. If the measured values deviate from the specified values,
insert a washer between the bracket of the blind-spot radar unit.
|
11. |
After checking and correcting the blind-spot radar unit angle, perform
the blind-spot radar radar correction procedure.
|
1. |
Rear bumper accident vehicles and vehicles that replaced rear corner
radar units must perform rear corner radar unit alignment using Diagnostic
tool.
|
2. |
Connect the cable of Diagnostic tool to the data link connector in driver
side crash pad lower panel, and turn on the Diagnostic tool.
|
3. |

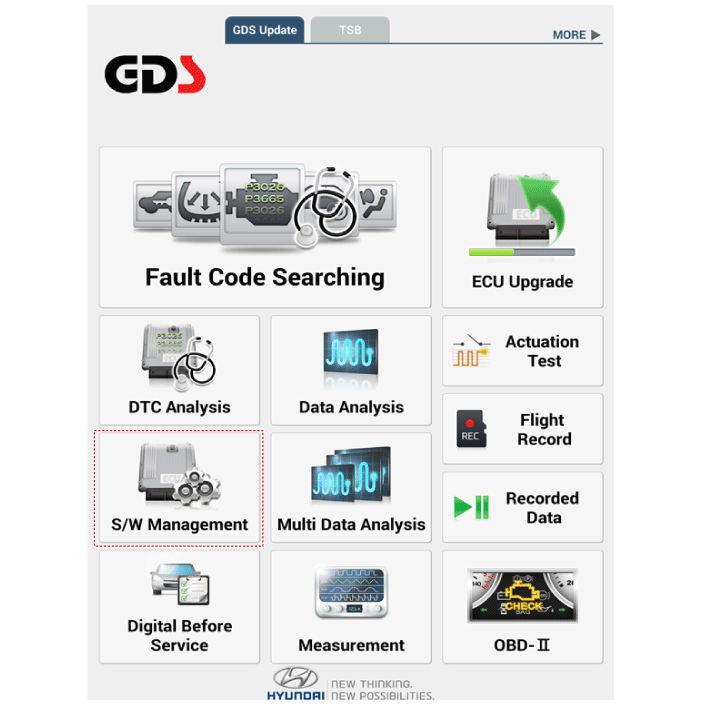

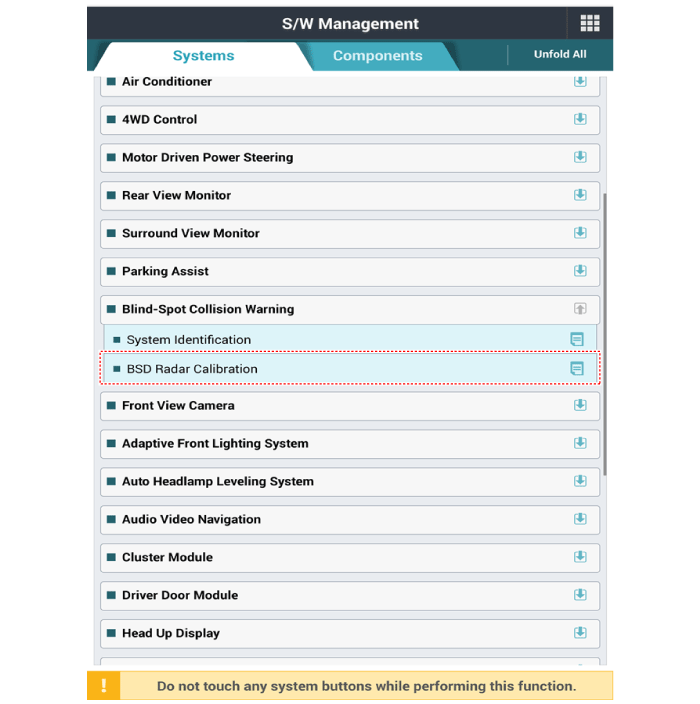

Select the 'S/W Management' and 'Car model'.
|
4. |

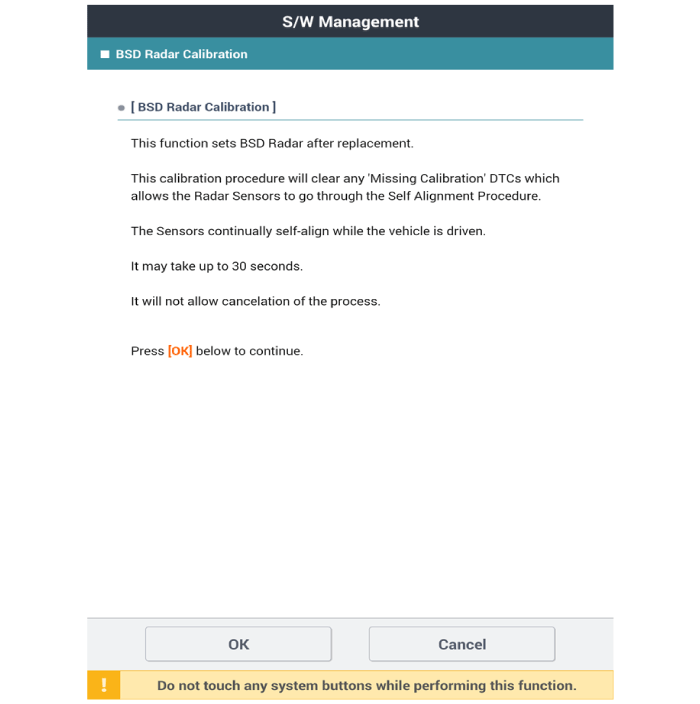

Select "Blind -Spot Collision Warning" and "BSD Radar Calibration".
|
5. |
Perform the "BSD Radar Calibration" procedure according to the Diagnostic
tool screen message.
|
