Hyundai Palisade: AWD Control System / Repair procedures

Hyundai Palisade (LX2) 2020-2025 Service Manual / 4 Wheel Drive (AWD) System / AWD Control System / Repair procedures

Adjustment
Description
The friction material inside the coupling will degrade over time. Therefore, corresponding compensation values must be referenced and entered after replacing the controller or the coupling.
Compensation Requirement and Procedure
1.

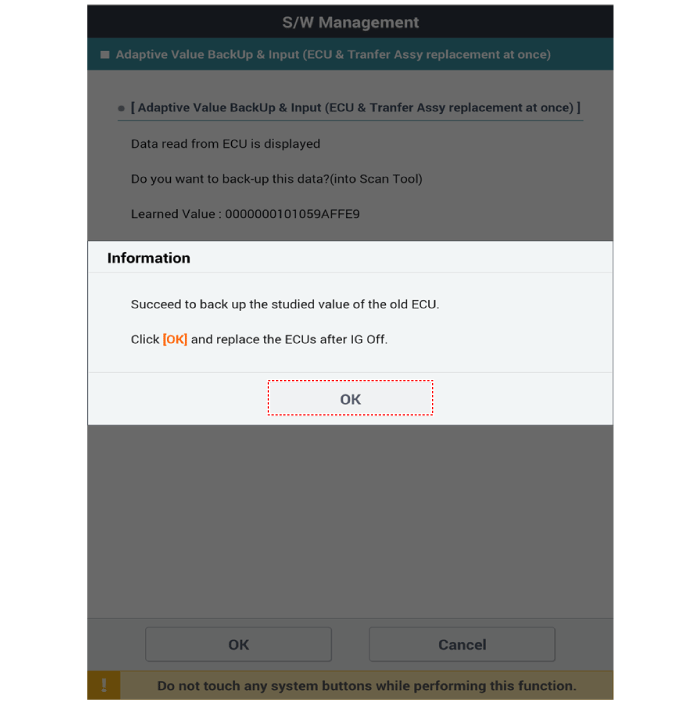

Simultaneous replacement of AWD ECU (Controller) and coupling
Does not require compensation.
2.
Replacement of coupling only
1)

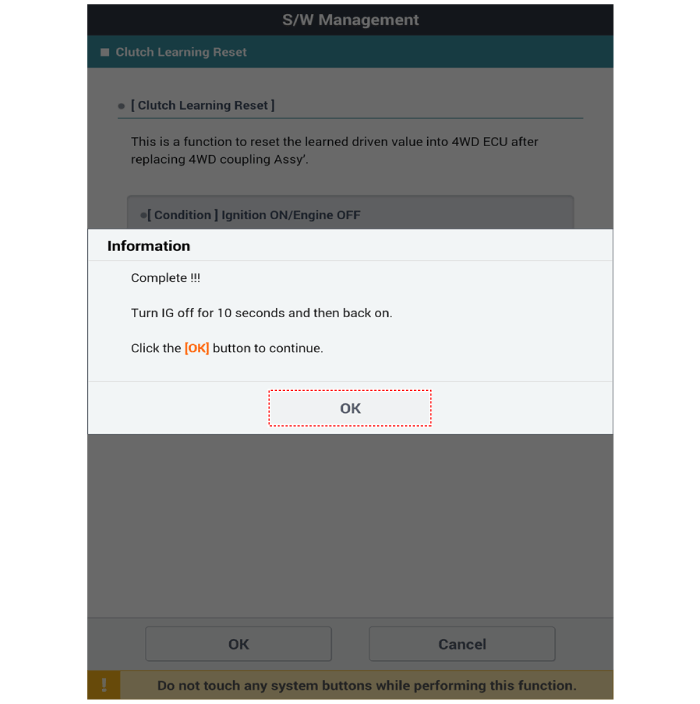

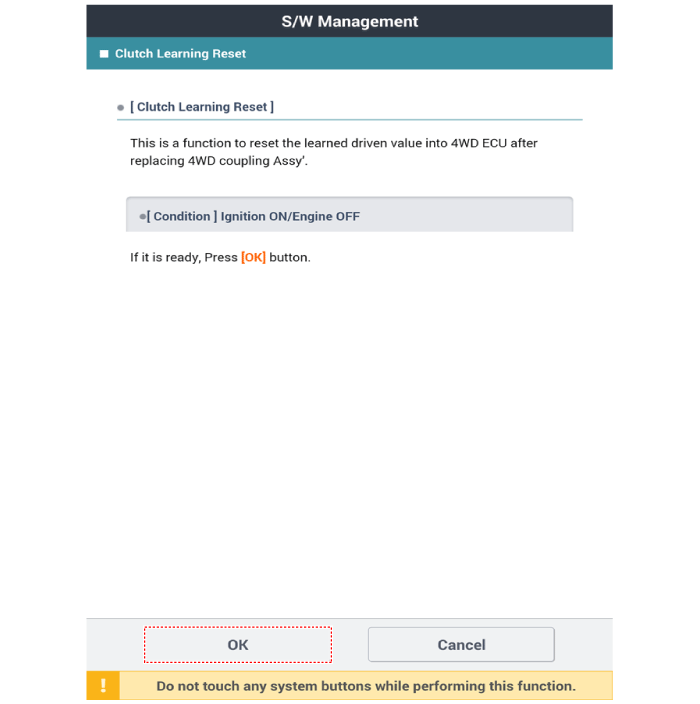

Reset the AWD ECU's (Controller) clutch learning.

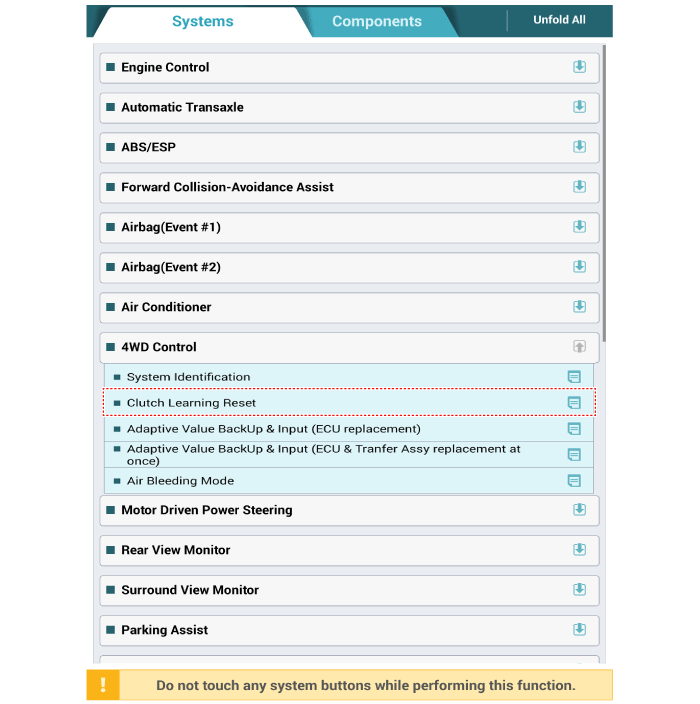

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

2)
Replacement of AWD ECU (Controller) only

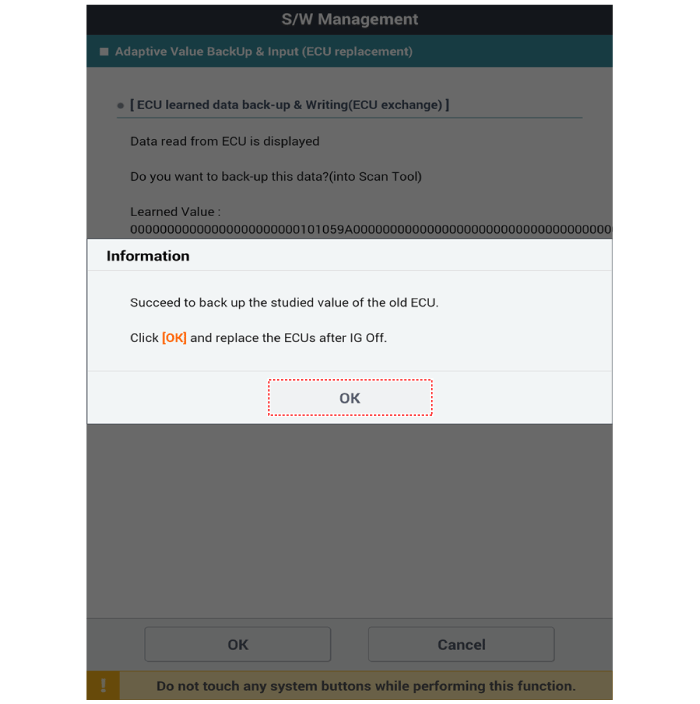

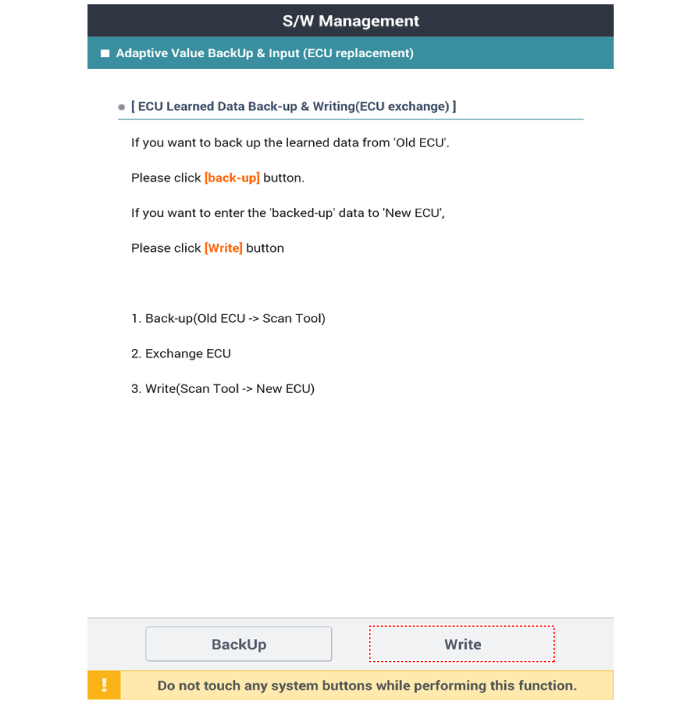

Before replacement: Check the ECU's clutch learning.

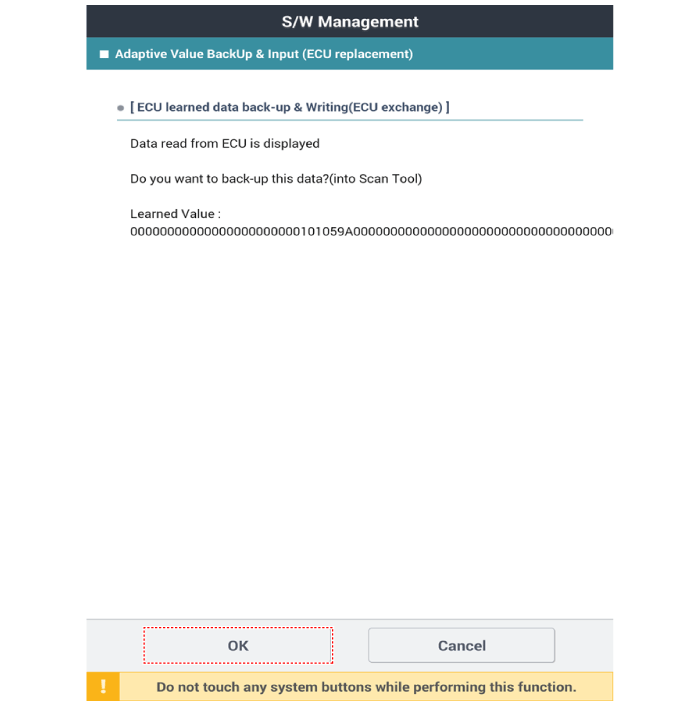

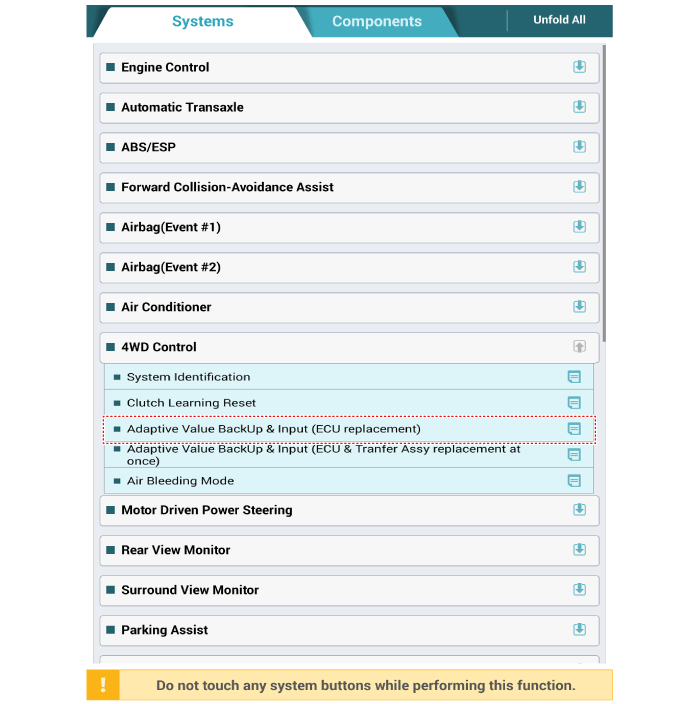

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

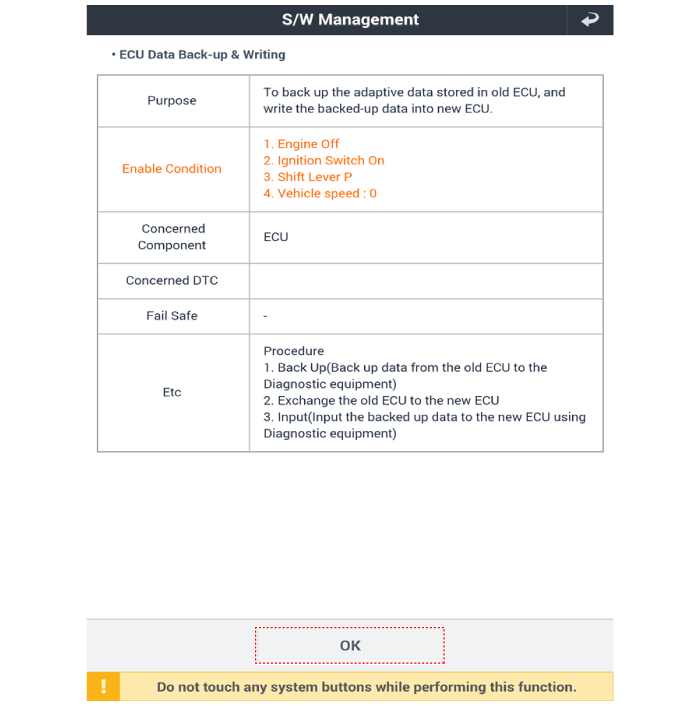

3)

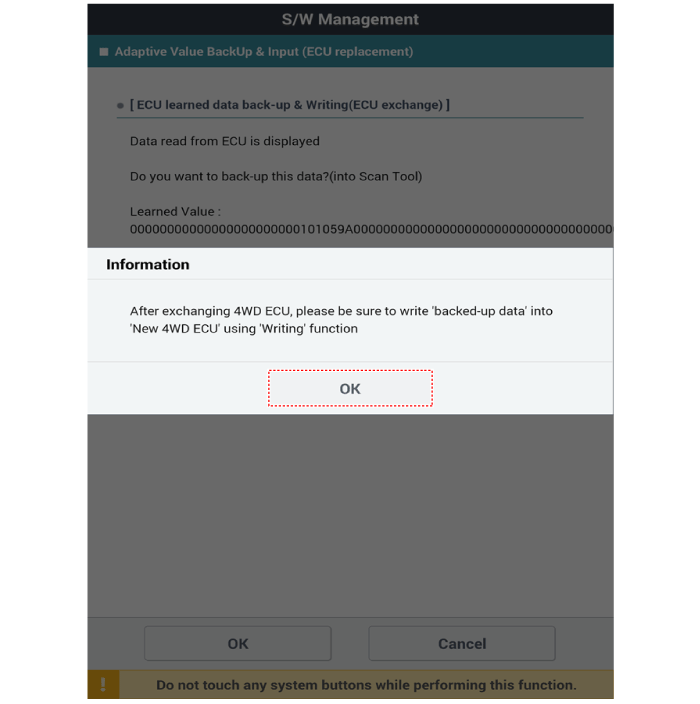

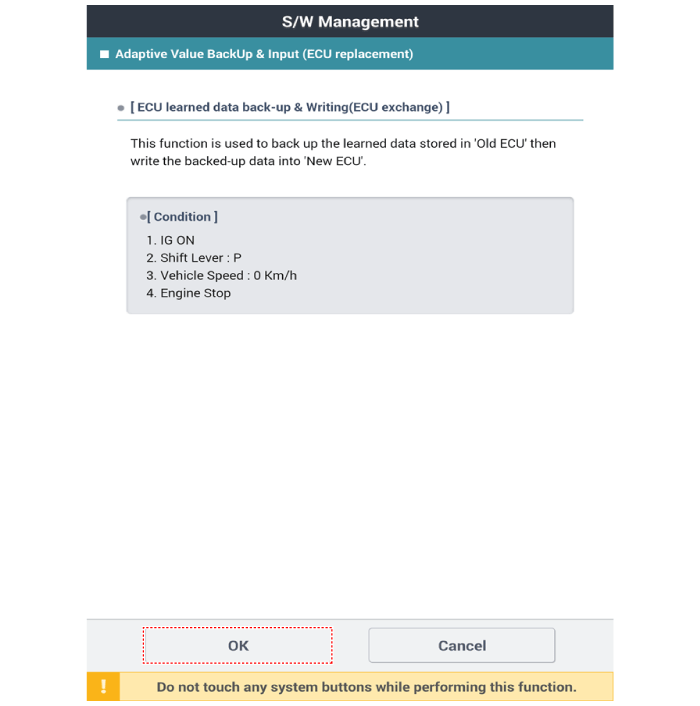

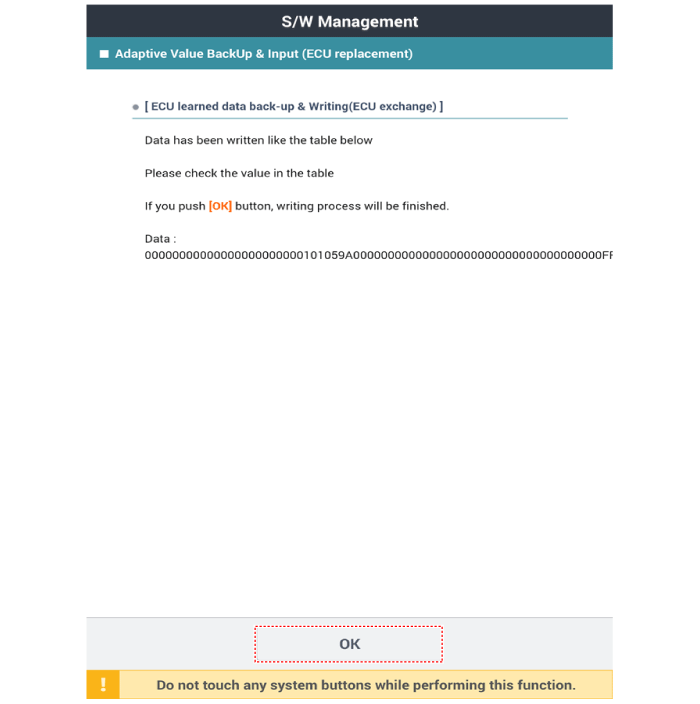

After replacement: Enter the original ECU's clutch learning into the replacement ECU.

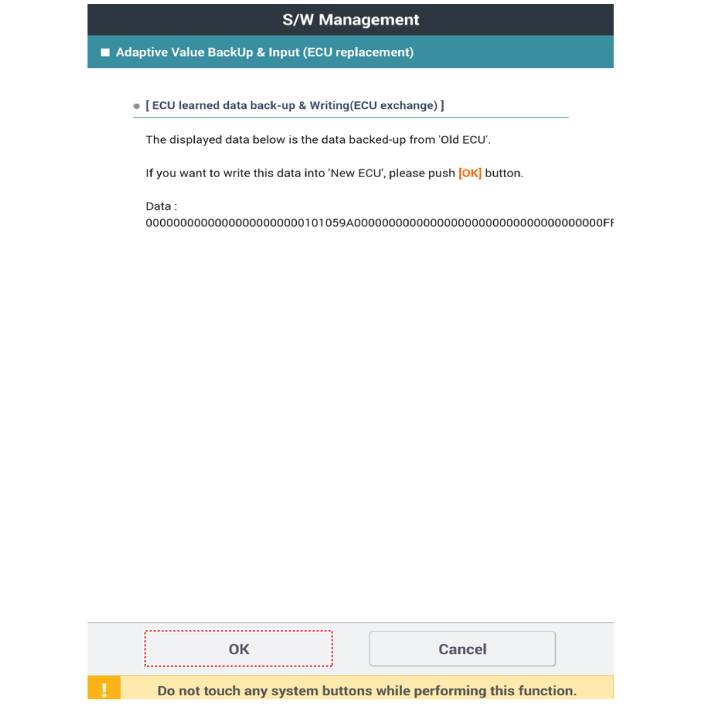

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

4)

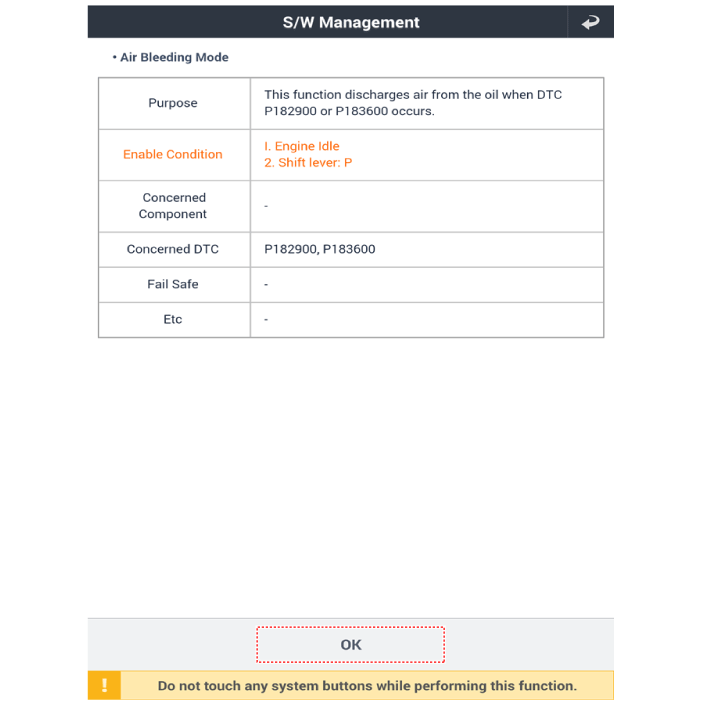

Perform the following procedure in case of the appearance of failure code (P182900, P183600).

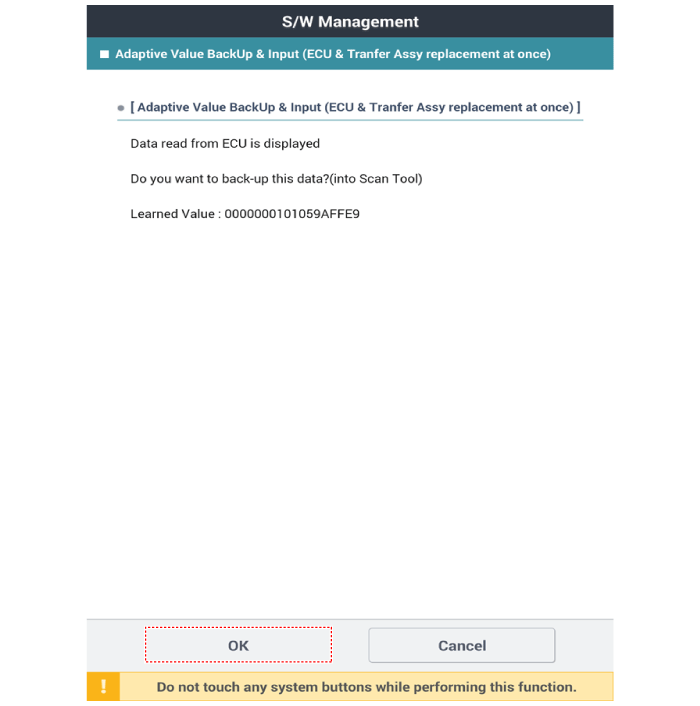

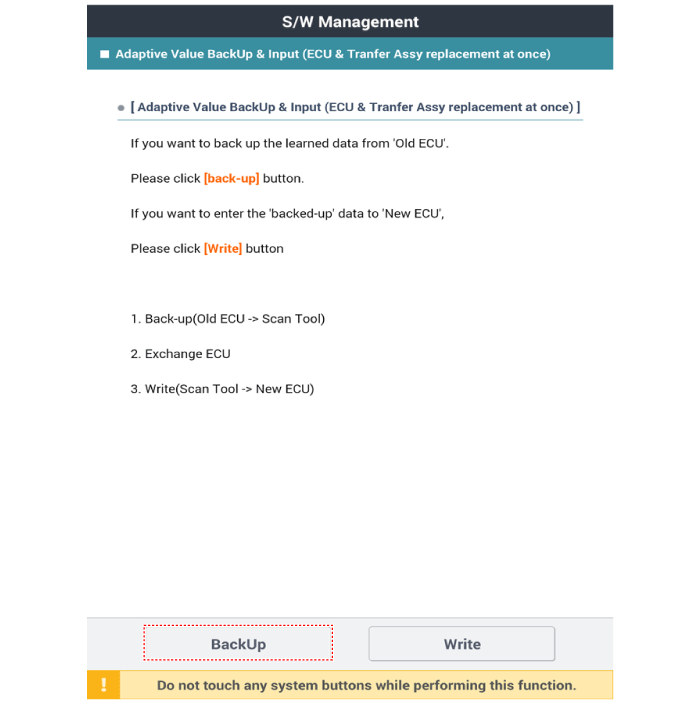

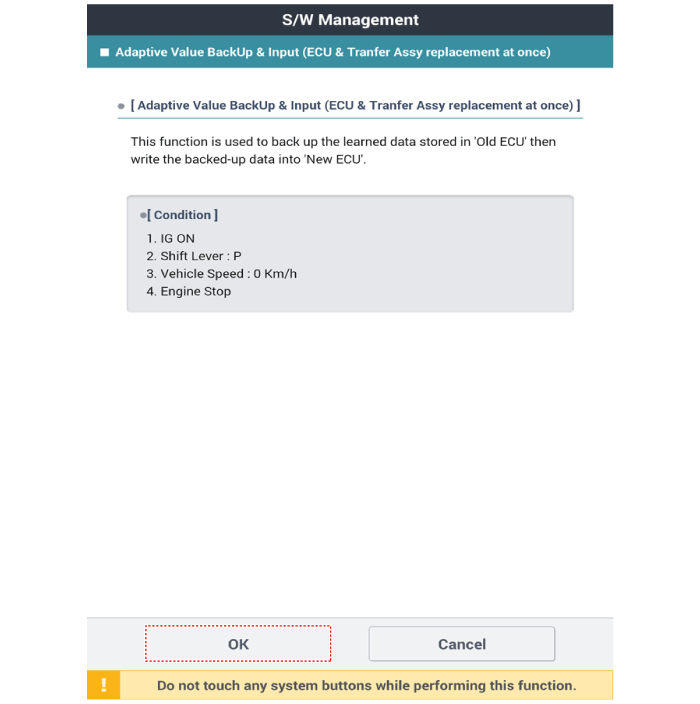

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
