Adjustment
Inspect Glass Alignment
1.

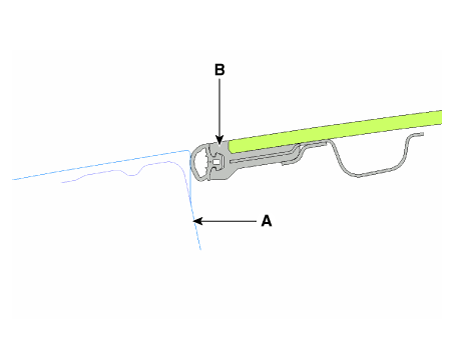

Inspect the alignment of the front glass weatherstrip (B) and roof panel (A) and adjust it if needed.
Alignment adjustment
Standard value [mm(in.)]
(1) Front edge : 0 mm (0 in.)
(2) Rear edge : 0 mm (0 in.)

Hyundai Palisade. Repair procedures

2.

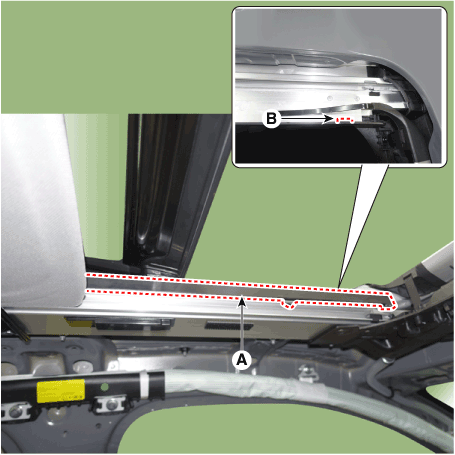

Slide the mechanism cover (A) in the direction of the arrow to align it with the groove (B) and remove it.

Hyundai Palisade. Repair procedures

3.

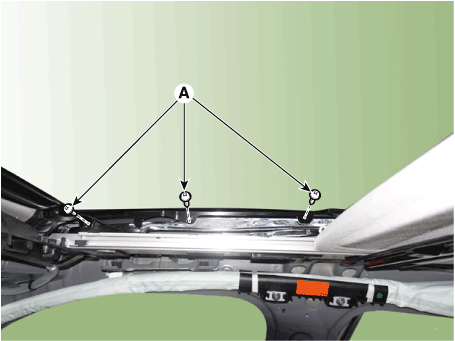

Adjust the height by loosening the screw (A) for adjusting the height of the glass.
Hyundai Palisade. Repair procedures
Unscrew the mounted screw while tilting the moving glass.

Hyundai Palisade. Repair procedures

Emergency operation
1.
Use the wide sunroof emergency operation only when the sunroof needs to be opened or closed in case of engine failure.
2.
Use a hexagon wrench to open or close the wide sunroof after removing the roof trim. Do not apply too much force when opening or closing the wide sunroof.

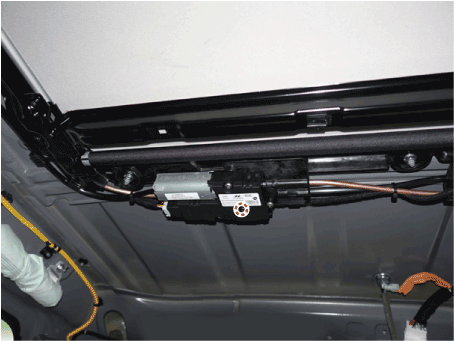

[Moving glass motor ]

Hyundai Palisade. Repair procedures

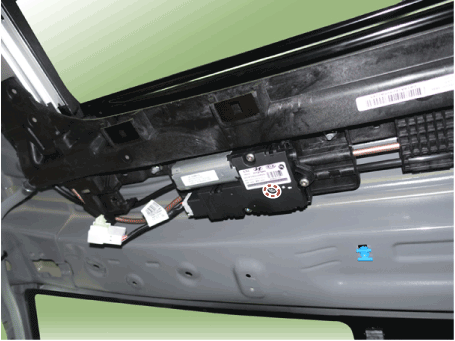

[Roller blind motor]

Hyundai Palisade. Repair procedures

3.
If needed, reset the wide sunroof according to the reset method.
(Refer to Body Electrical System - "Wide Sunroof Motor")
