Hyundai Palisade: Automatic Transaxle Control System / SBW Control Unit (SCU)

Hyundai Palisade (LX2) 2020-2025 Service Manual / Automatic Transaxle System (A8LF1) / Automatic Transaxle Control System / SBW Control Unit (SCU)

Components and components location

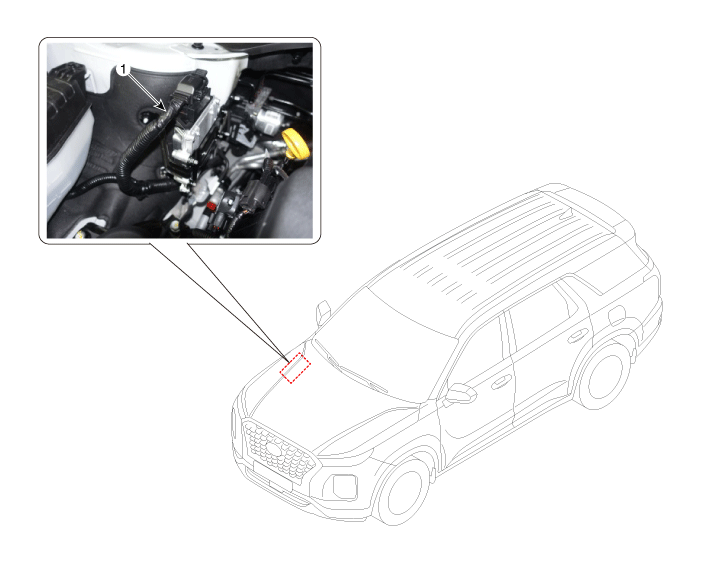

Component Location

Hyundai Palisade. Components and components location

1. SBW Control Unit (SCU)


Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.

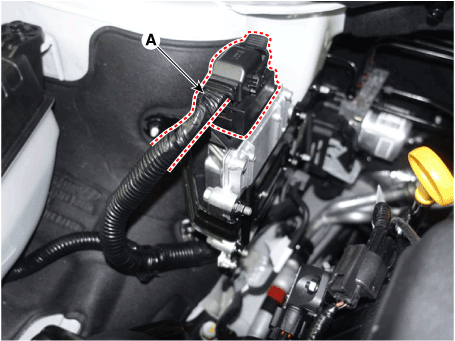

Disconnect the connector (A).

Hyundai Palisade. Repair procedures

3.
Remove the SBW Control Unit (SCU) (C) after removing the nuts (B).

Hyundai Palisade. Repair procedures

Installation
1.
To install, reverse the removal procedure.
