Hyundai Palisade: Smart Key System / Smart Key

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Smart Key System / Smart Key

Repair procedures
Smart Key
Smart Key Code Saving
1.

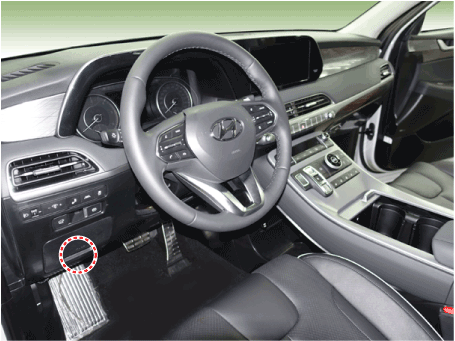

Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.

Hyundai Palisade. Repair procedures

2.

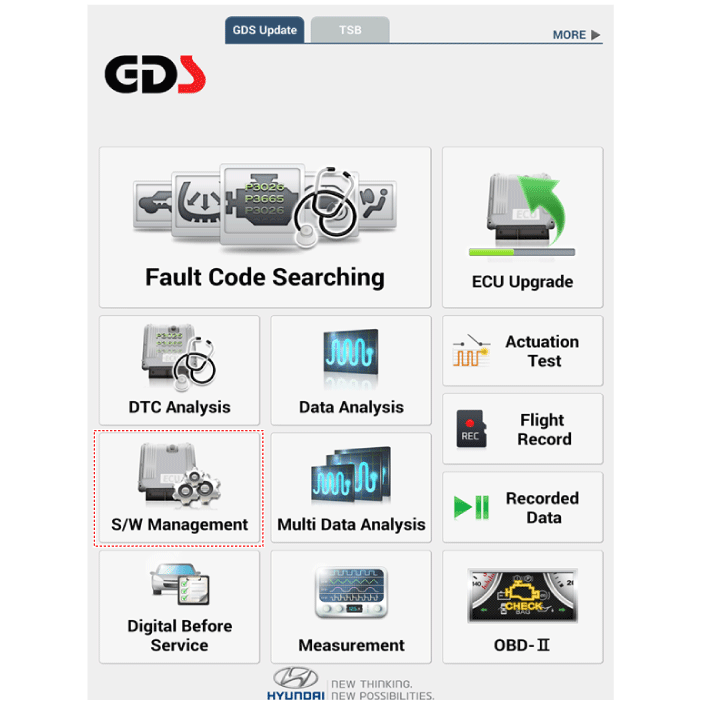

Select the 'S/W Management' and 'Car model'.

Hyundai Palisade. Repair procedures

3.

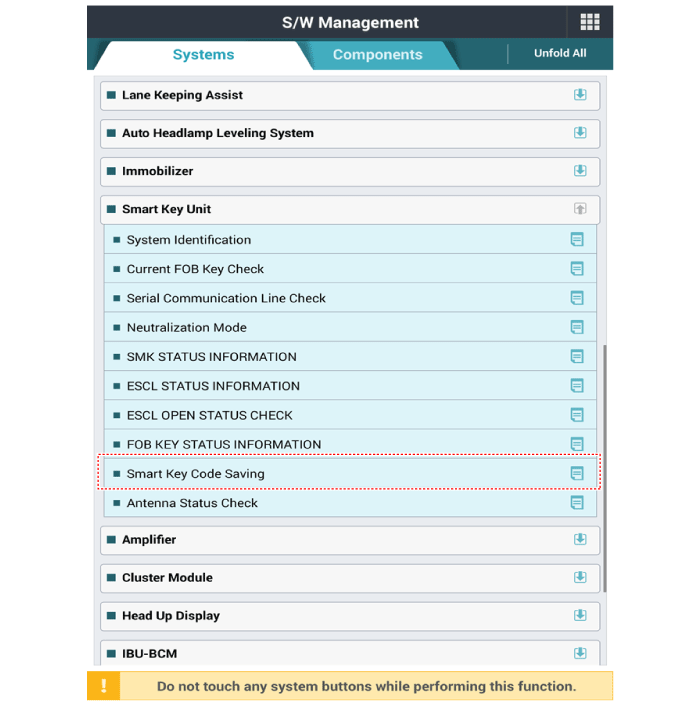

Select the 'Smart Key Unit' and 'Smart Key Code Saving'.

Hyundai Palisade. Repair procedures

4.

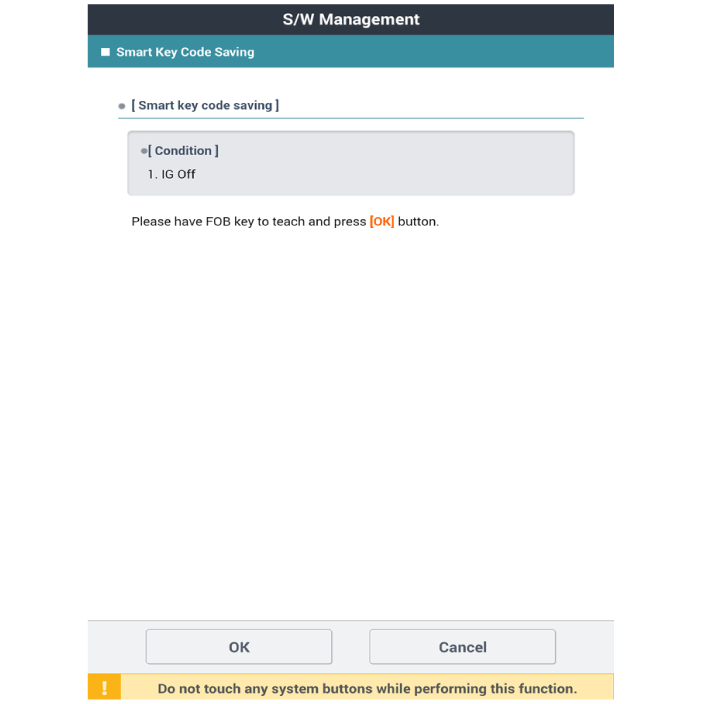

Follow the instructions on the screen.

Hyundai Palisade. Repair procedures

    Description and operation

    Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed...

    Smart Key Unit

    C..
